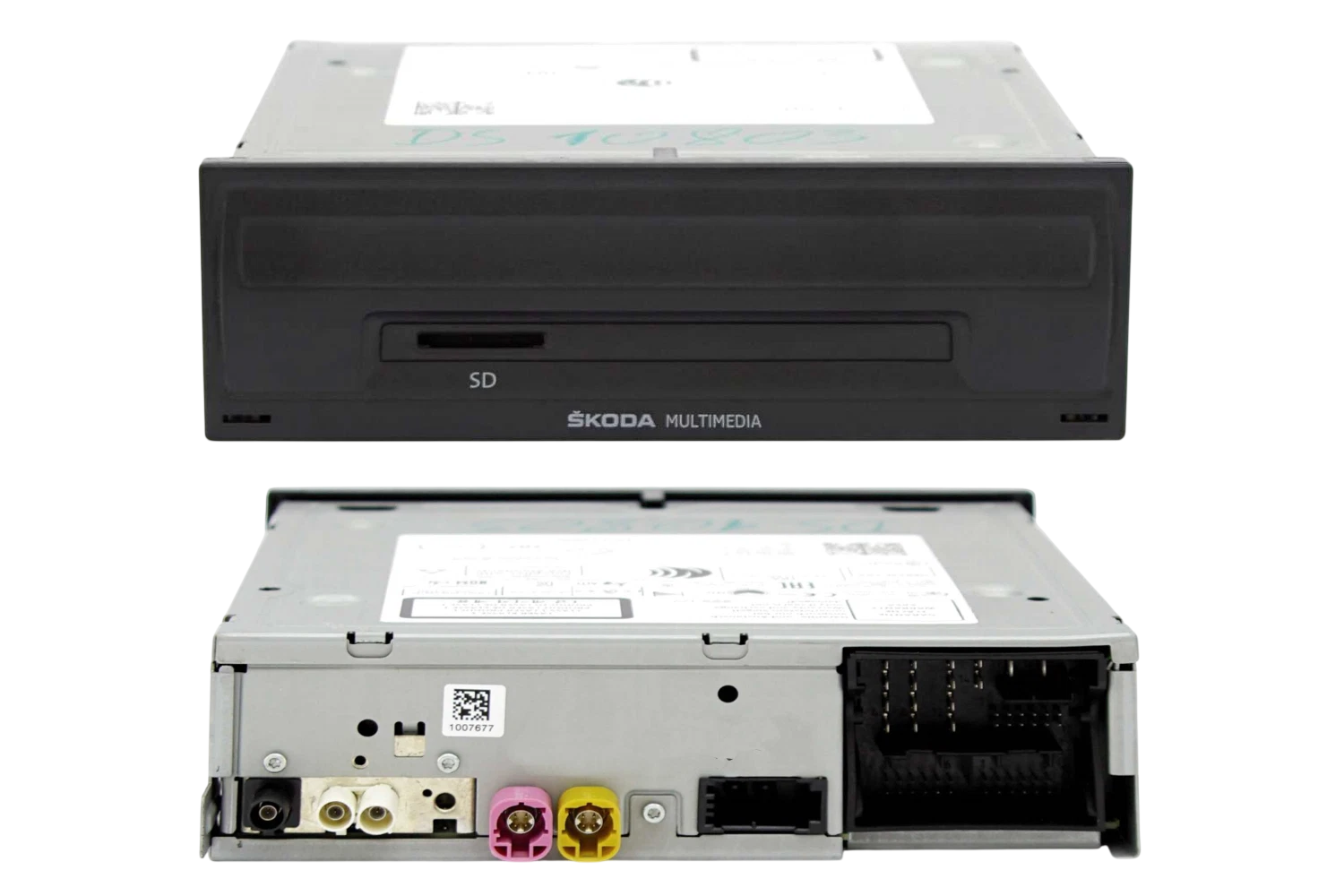

Genuine Skoda OEM Part – Infotainment Unit (Low) – 5E00358xx – MIB1

• • Manufacturer: Primarily Panasonic (acting as the core Tier-1 hardware assembly line for this prefix variant), with secondary platform components supplied via TechniSat.
  • Architecture Class: VAG MIB1 / MIB2 Standard (Modular Infotainment Matrix) tier—integrated into early generations of the platform.
  • Core Processor: Nvidia Tegra or Texas Instruments (TI) Jacinto entry-tier automotive infotainment processor.
  • Operating System: QNX Neutrino RTOS (Real-Time Operating System).
  • Internal Storage: 4GB flash allocation layout (predominantly reserved for operating system kernel, system logs, data caching, and standard radio database parameters).
  • Chassis Design: Standard 1-DIN metallic frame deployment engineered exclusively for integration into hidden glove compartment docks or specialized dash cavities.

• • Video Bus Protocol: High-Speed Data (HSD) physical connector channel utilizing Low-Voltage Differential Signaling (LVDS).
  • Native Display Driving Support: Outputs raw graphical and touch interface display signals directly onto separate central dash display hardware modules.
  • Supported Touchscreens: Paired factory-standard with Škoda 5.8-inch (e.g., Bolero 5E0919605B) or upgraded 6.5-inch resistive/capacitive color glass panels native to the early generation car fascia layouts.
  • Output Resolution Capability: Outputs clean visual interfaces down the video pipeline at a native resolution of 400×240 pixels or 800×480 pixels, depending on whether it is paired with basic or mid-tier display panels.

• • SmartLink / App-Connect Framework: Early firmware iterations of the baseline 5E0035842 logic layers feature conditional hardware support for Apple CarPlay, Android Auto, and MirrorLink.
  • Integration Prerequisites: External phone synchronization necessitates data routing through a physically wired center console high-speed USB hub. Feature visibility requires software activation keys (FEC/SWaP codes) applied directly into system memory using VAG-authorized ODIS shop diagnostics.
  • Bluetooth Chipset Profile: Supports hands-free telephone systems and digital audio streaming capabilities. Hardware profiles include:
    • • HFP: Hands-Free Profile for wireless network calling.
      • A2DP: Advanced Audio Distribution Profile for media streaming over Bluetooth.
      • AVRCP: Audio/Video Remote Control Profile for skipping tracks and reading metadata directly from steering wheel controls.

• • Physical Drive Slot: 1x Single disc front-facing integrated mechanical optical drive unit supporting standard Red Book Audio CDs and MP3 data discs.
  • Flash Memory Expansion: Single or Dual SD card input slots supporting external storage layouts up to 32GB/64GB capacity boundaries (optimized for FAT32 filesystems).
  • Supported Audio Containers: Standard audio files like MP3 (.mp3) and WMA (.wma) playback tracks.
  • Video Limitations: Standard operational firmware blocks raw local video format rendering (e.g., .mp4, .mkv) via SD cards due to strict hardware allocation boundaries assigned to the non-navigation, standard multimedia core tier.

• Vehicle Ecosystem Target: Specially assigned code footprint intended for the Škoda Octavia Mk3 (Type 5E) production years spanning roughly 2013–2016.
• VAG Anti-Theft: Locked via VAG Component Protection (CP) Type 2 firmware protocols. The system actively screens the vehicle VIN over the CAN-bus network; matching imbalances cause immediate audio pipeline muting until unlocked via a secure dealership server connection.
• Audio Amplification: Built-in 4-channel power stage module delivering standard 4×20 Watts peak output directly into the primary Quadlock vehicle wiring harness speaker terminal infrastructure.
• Radio Tuner Framework: Double-tuner configuration featuring phase diversity matrix logic to dynamically isolate clean FM/AM signals alongside basic RDS background metadata tracking

Compatibility:

Octavia 5E

Note:

Fully Plug & Play.

Available Part Number:
